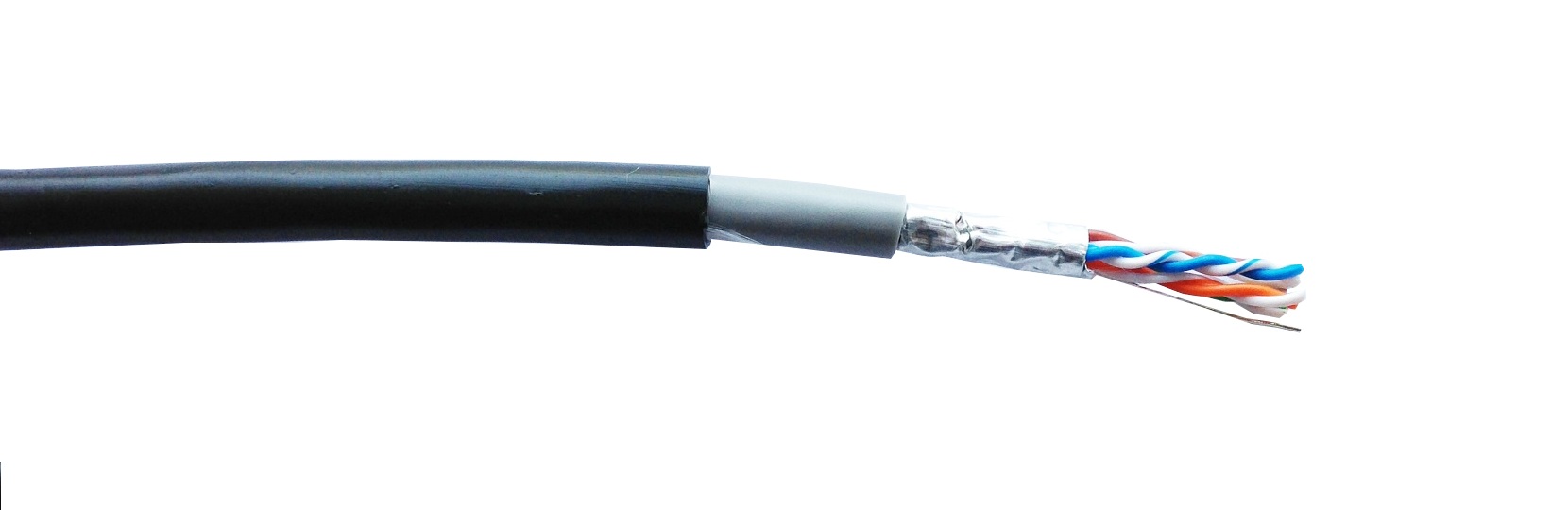

| Interface | • PE Sheathed for greater protection • UV Resistant • Suitable for Outdoor Installations Electrical Parameters •CONDUCTOR RESISTANCE (DC): 9.38 Ω /100MTR@20˚C. MAX. • RESISTANCE UNBALANCE: 4 %MAX • DIELECTRIC STRENGTH: 1.7 KV AC for 2S • INSULATION RESISTANCE: 5000 MΩ /km • MUTUAL CAPACITANCE: 5.6 nF/100 mtrs MAX. • CAPACITANCE UNBALANCE PAIR/GROUND: 330 pF/100M MAX •PROPAGATION DELAY: 536 nS/100m max @ 250 MHz • DELAY SKEW: ≤45 nS/100M • NORMAL VELOCITY OF PROPAGATION: 69% • TENSILE STRENGTH: >9MPa, (9000KN/Square Meter) • IMPEDANCE: 100 ± 15% Ώ |
